- High resolution touch screen 8,4″
- LCD backup display
- Intuitive user interface
- Intergrated infusion stand
- Automated dual pump control: high pulsatile blood flow
- USB interface: easy data export and fast software update
- Battery charge level indicator
- Connection arterial pressure sensor
- Flow and bubble sensor
- Multifunktional connector (pressure sensors)
- Interface dosing system: rapid volume and drug delivery
- Intergrated venous blood gas analysis (Hb, SvO2, Tven)
- Reperfusion set: preconfigured tubin system, fast priming
- Intergrated arterial blood gas analysis
- Battery compartment for two li-ion batteries: mains independent operation for 3 hours
Ahead-of-the-curve technology.
CARL System. Controlled. Targeted. Personalized.
The CARL System is designed to improve survival and neurologic recovery in patients affected by acute cardiac arrest. The technological performance characteristics of the CARL System components are based on the requirements of CARL Therapy, a novel therapeutic approach for resuscitation that emphasizes controlled, targeted and personalized whole-body reperfusion.
CARL. Mobility Concept
Designed for in-hospital and out-of-hospital transport, the CARL Mobility Concept is a comprehensive hospital solution that includes the CARL Cart and CARL Rack.
Three products, one purpose: Saving lives.
Enabling perfusion technologies.
With CARL, we produce and market the world's first extracorporeal system that can be used to provide sufficient blood circulation in a controlled manner outside the hospital.

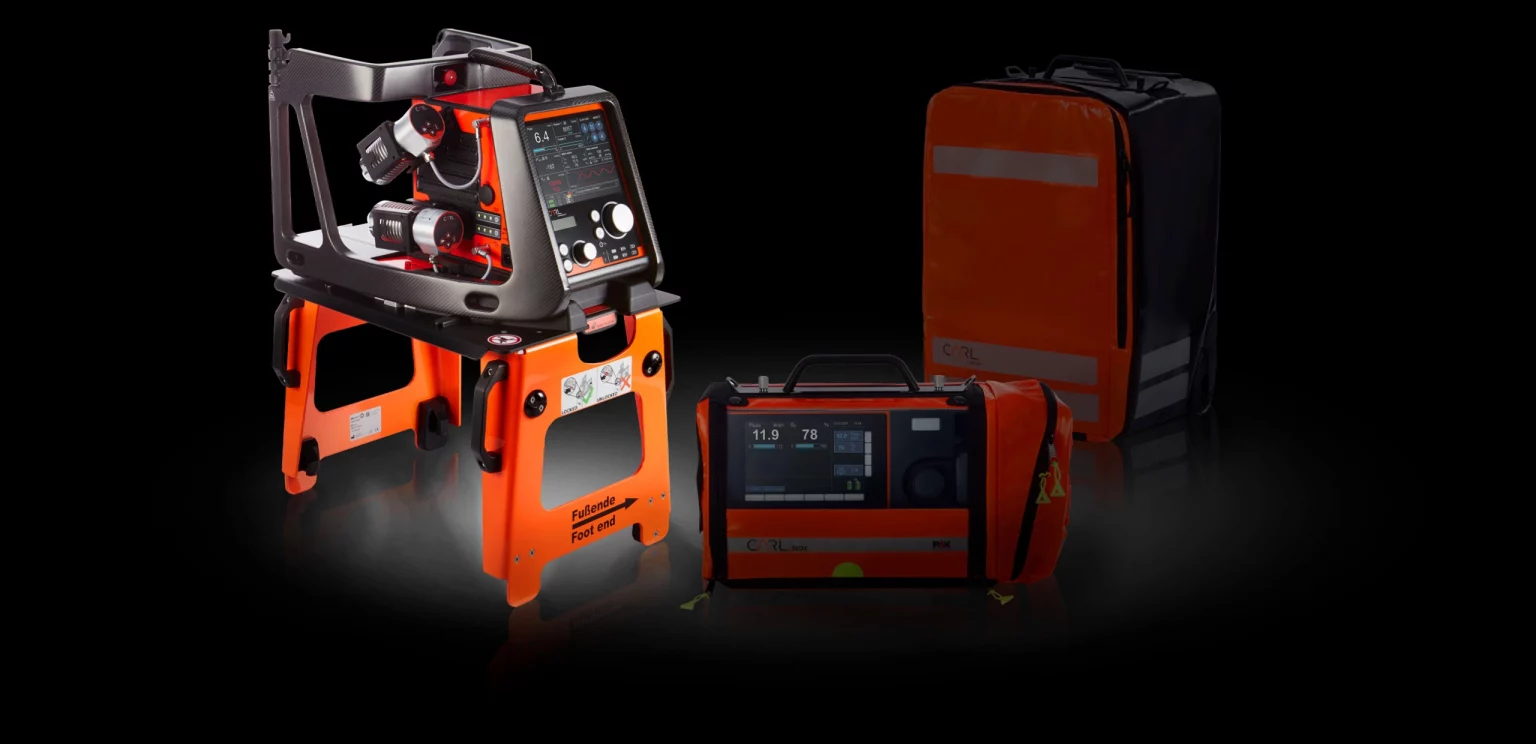

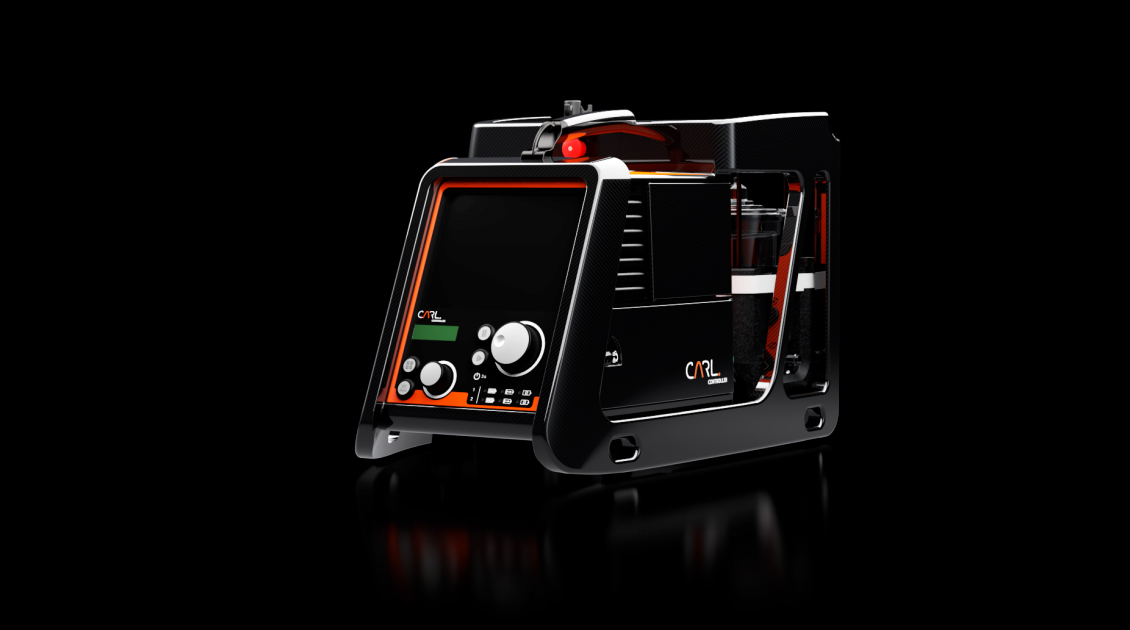

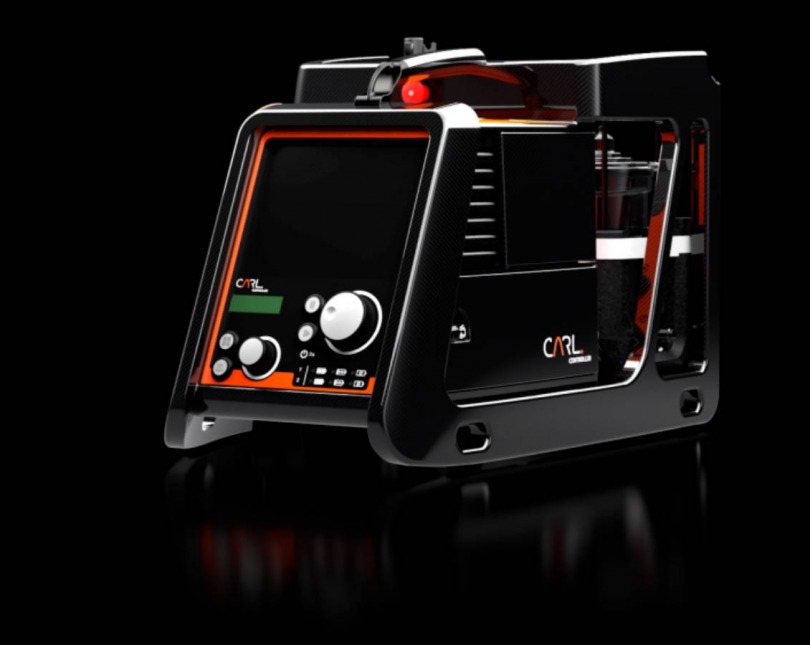

CARL. Controller
- Perfusion system with powerful, automated dual pump control to generate high pulsatile blood flow
- Comprehensive measurement sensor system with online venous and arterial blood gas analysis and plug-in fibre optic catheter for invasive blood pressure monitoring
- Preconfigured, compact perfusion set for quick and easy system start-up
Accessories
CARL REPERFUSION SET
- Compact, preconfigured perfusion set
- Pressure, SvO2, Hb and temperature measurement
- Additional blood pump for pulsatile operation
- Powerful PMP oxygenator with integrated heat exchanger
- Patented priming bag for quick and easy venting of the reperfusion set
- Interfaces for arterial blood gas analysis and dosing system
- Port (hemostasis valve) for insertion of the arterial pressure measurement catheter
CARL Arterial Pressure Sensor
- Fibreoptic catheter for direct, invasive measurement of arterial blood pressure
- Direct insertion via port in reperfusion set without separate puncture

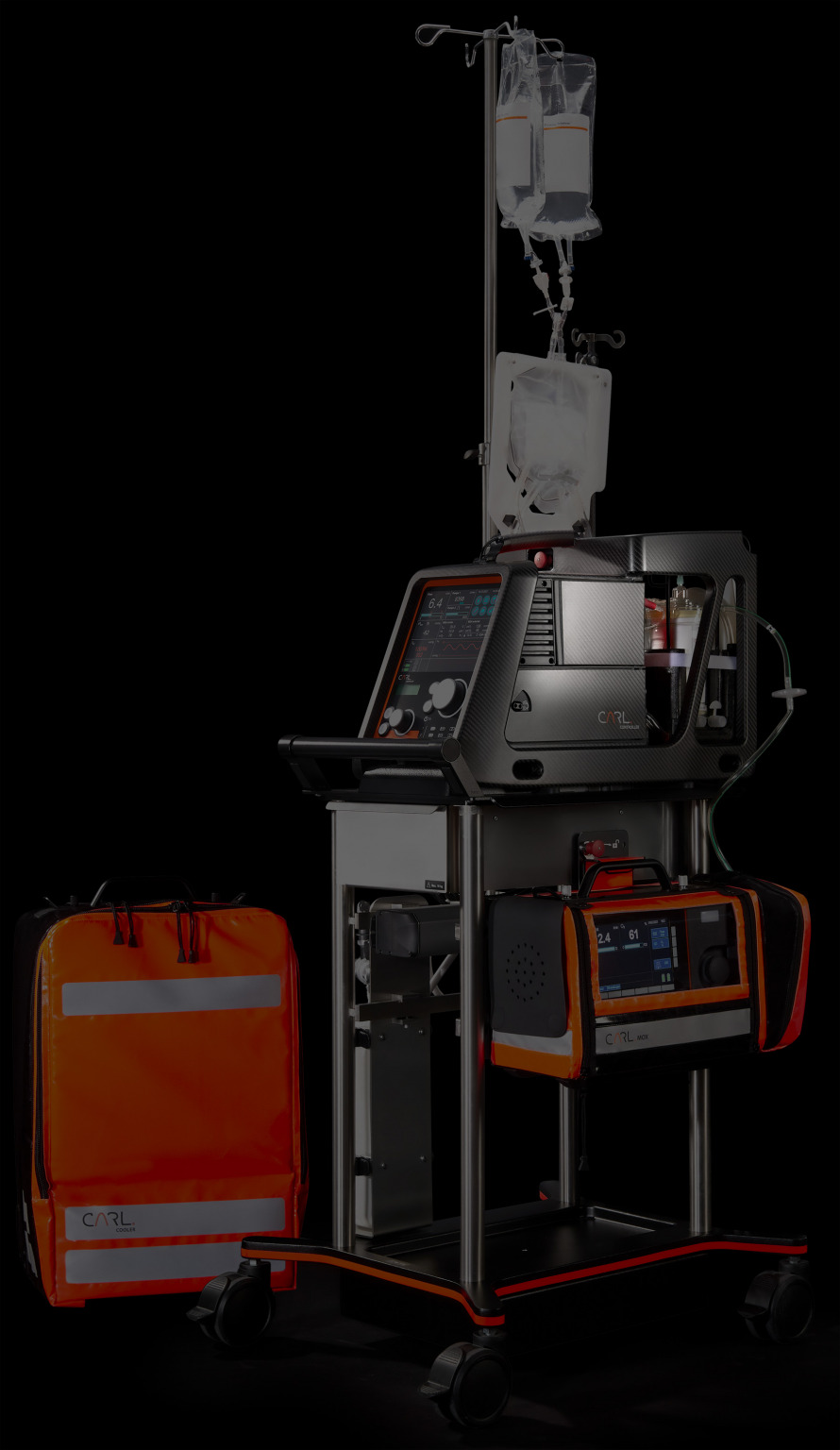

CARL Arterial Blood Gas Cartridge
- Disposable cartridge for continuous measurement of arterial blood gas parameters (paO2, pH, calcium, sodium, potassium)
CARL Infusion Bracket
- Attachable holder for mounting a manual infusion system
- For rapid drug and volume administration

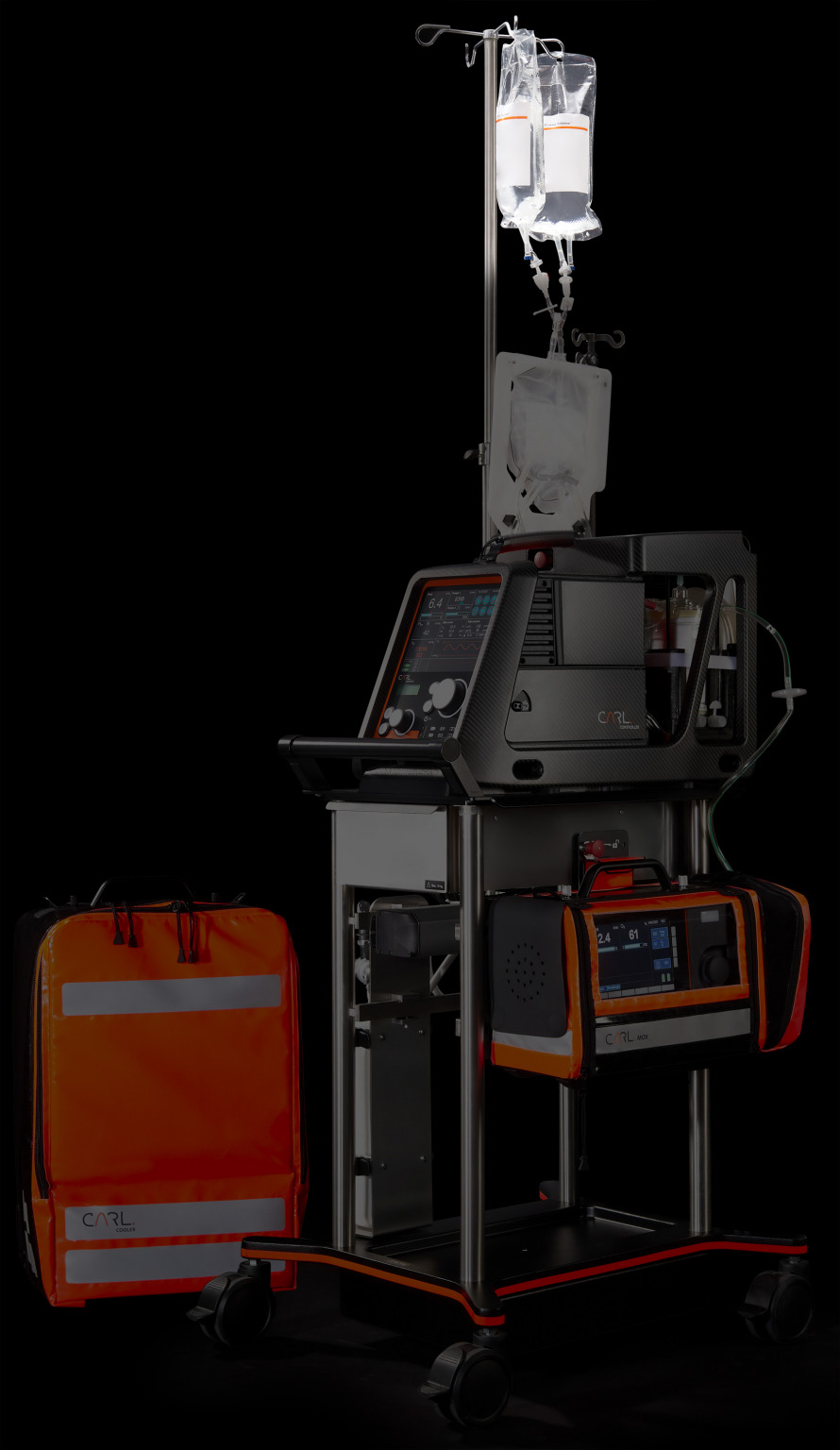

CARL Priming Solution
- Patented priming solution to optimize the reperfusion process
CARL Rack
- Device bridge with integrated locking mechanism for the CARL Controller
- For mounting on Stryker mobile stretchers type M1, Power Pro XT, Power TL

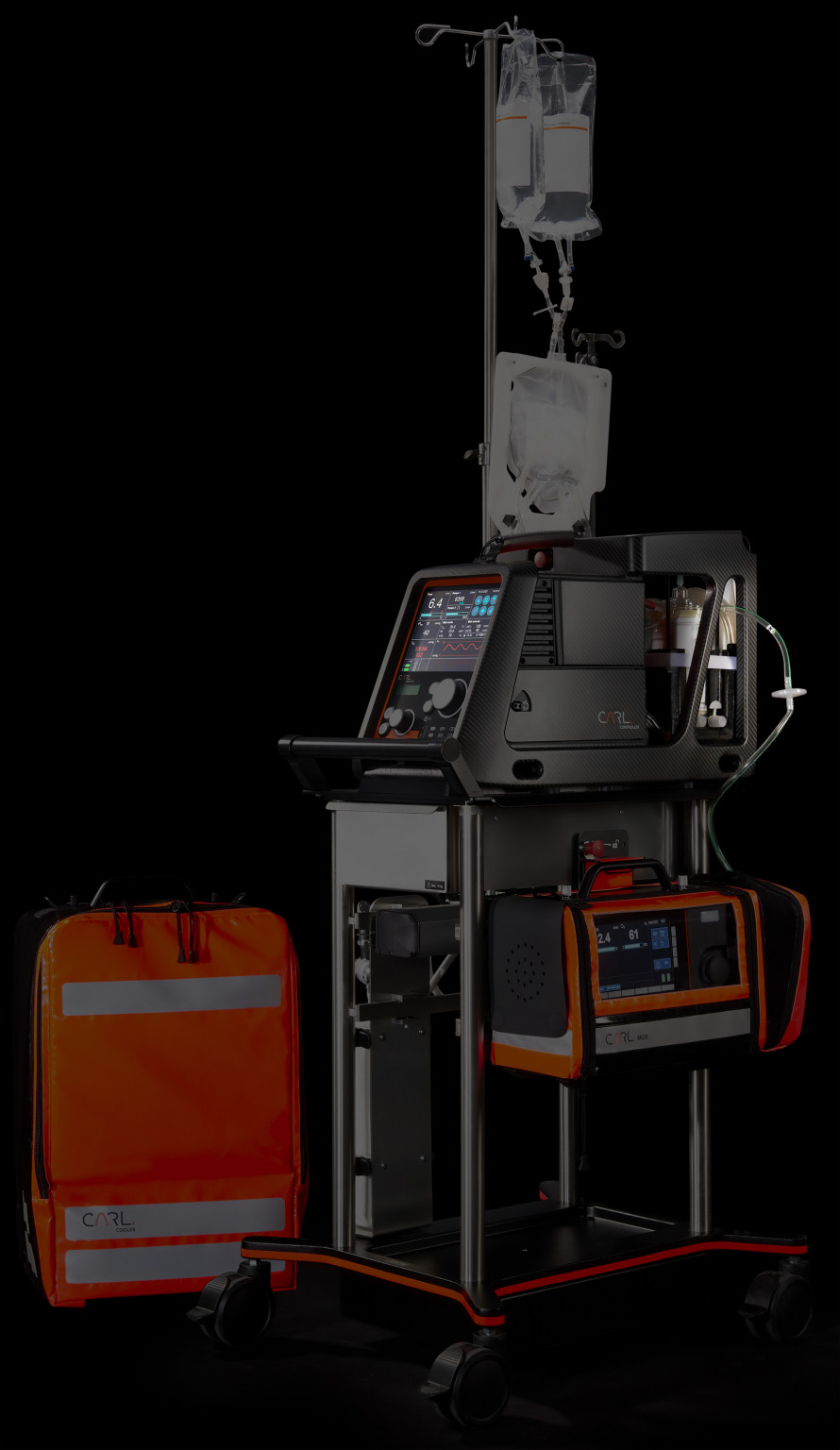

CARL Cart
- Multifunctional equipment cart for fast and efficient transport of the complete CARL System within the clinic

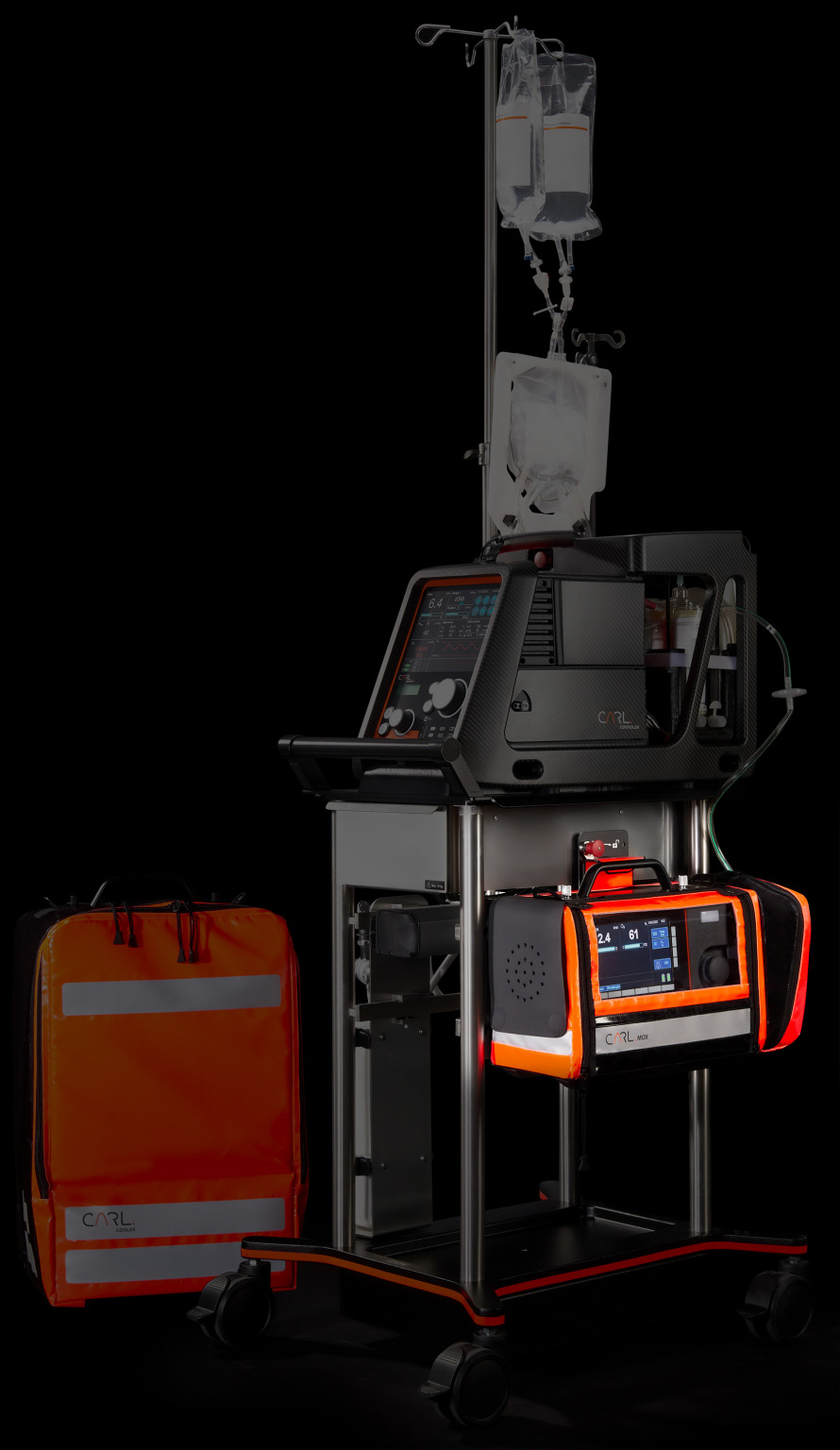

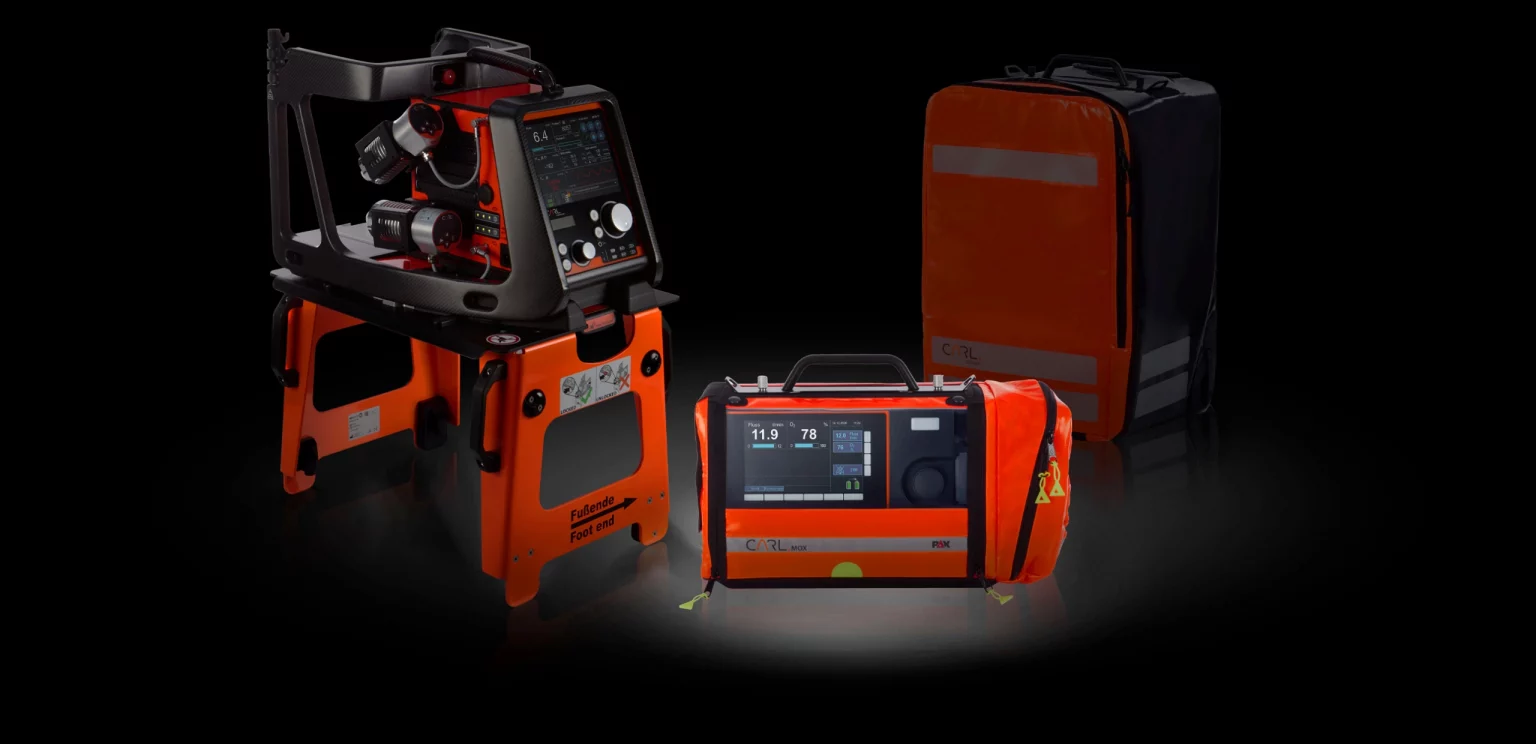

CARL. MOX
- Mobile oxygen supply for controlled oxygenation and decarboxylation in the extracorporeal circuit
- Resource-saving through the use of room air by means of blower technology
- Precise control of O2 concentration (21 to 100%) and CO2 elimination (up to 12 l/min gas flow)
- Sufficient battery power (approx. 4 h), also for out-of-hospital use
Accessories
CARL MOX Wall Bracket
- Holding system for safe mounting of the CARL MOX
- For transport in the rescue vehicle or for safe mounting during use in the intensive care unit or in the operating room

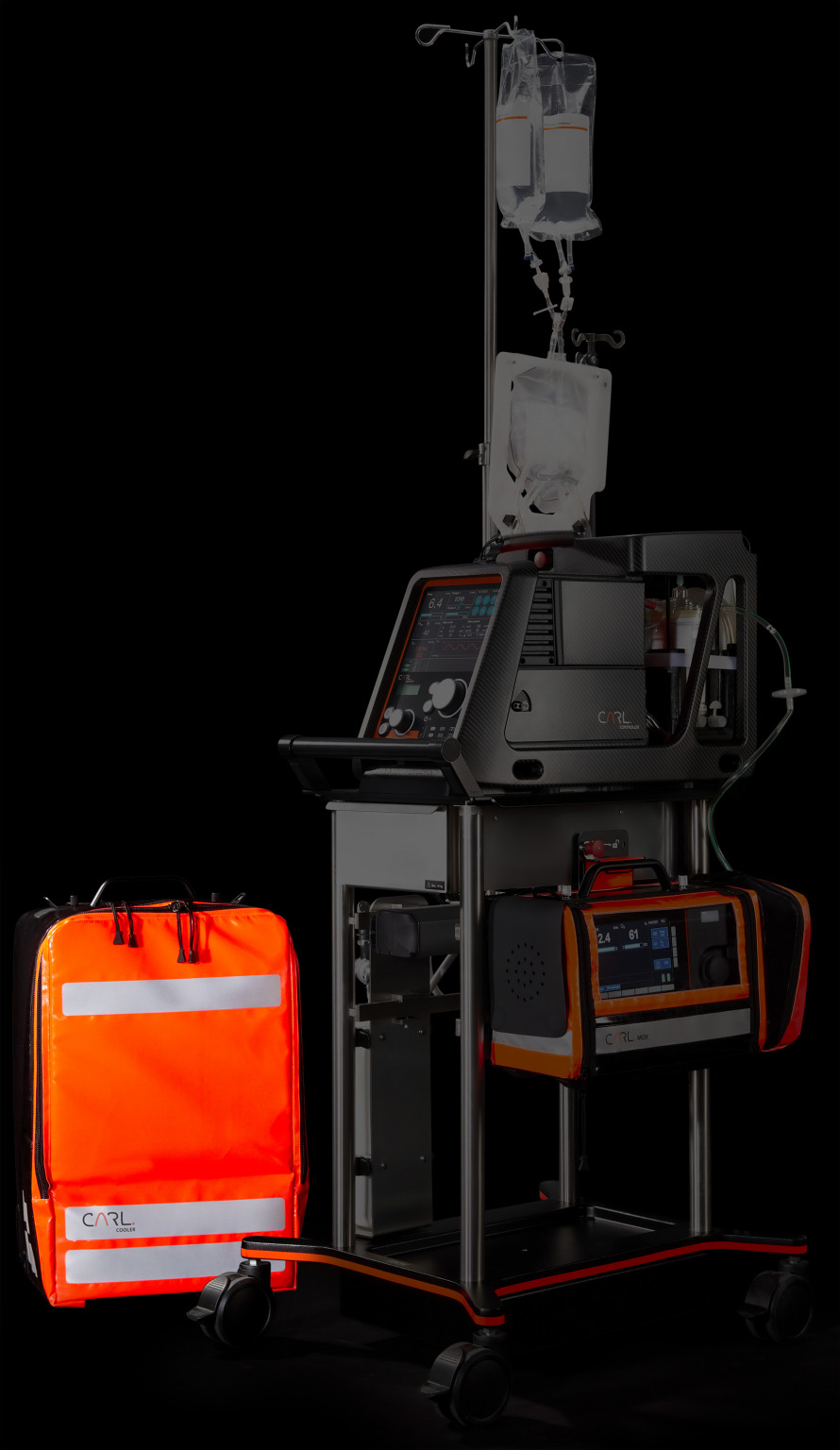

CARL. Cooler
- Mobile hypothermia device for rapid therapeutic cooling in the context of extracorporeal circulation
- Δ 4 °C cooling capacity within a few minutes
Accessories
CARL Cooler Kit
- Disposable for resource-independent cooling
- Direct connection to the oxygenator
- Cooling by endothermic reaction
